Descripción
- 【Support&Warranty】If there is anything problem with your BETAFPV item, please contact us before returning or refund. We will help you solve it at the first time
- 【New Generation Design】Toothpick F4 AIO 20A FC is the first 20A AIO flight controller in the market, can totally handle 20A continuous current. Compare with F4 AIO 12A FC, F4 AIO 20A FC uses 12 single N-Channel MosFET chips. Each chip integrates 1 MosFET. So it could stand more larger current for aggressive flying. A new generation design customized for 3-4 inch brushless toothpick drone
- 【F4 AIO 20A FC BLHELI_S】The FC integrated with a Betaflight MATEKF411 processor FC, Betaflight OSD, F4 MCU, and 20A ESC, support 1-4S battery. Compatible with 120X, 130X, 140X brushless motors
- 【Double-sided Motor Solder Pad】Two options for motor installation which include pins connected or wire connected. The toothpick F4 AIO 20A FC comes with motor pins but has not pre-solder in default, which is convenient for customer soldering with motor wires
- 【Real Holes&New Layout】Comes with real holes instead of notches, all solder pads of this Toothpick F4 AIO 20A FC are at the edge, with side-mount USB port, which is convenient for installation and solder
Descripción del producto

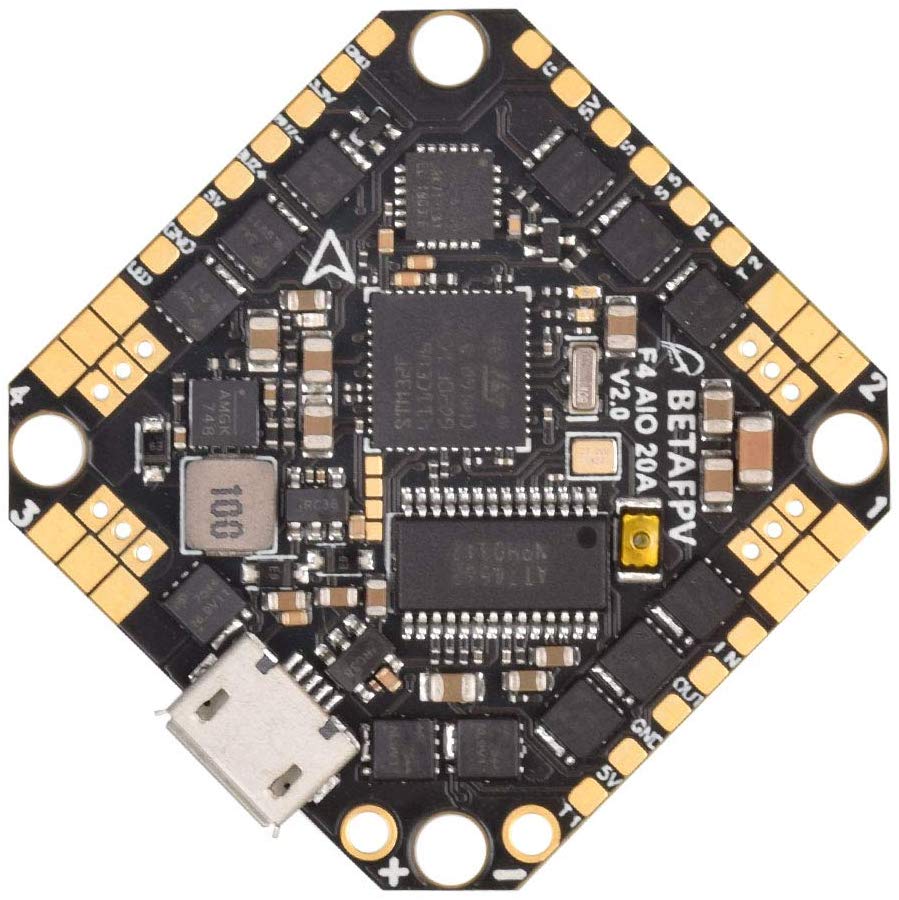

BETAFPV F4 1-4S AIO 20A Toothpick Brushless Flight Controller BLHELI_S 20A ESC No RX OSD Smart Audio with XT30 Cable for 3-4 inch Toothpick Micro Quadcopter FPV Racing Drone
SPECIFICATIONS OF FC
CPU: STM32F411CEU6 (100MHZ)
Six-Axis: MPU6000 (SPI connection)
Size: 32.5*32.5mm (26.5mm mounting holes)
Firmware version: Betaflight MATEKF411 (MK41)
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
Support programmable LED like WS2812 etc
Built-in current sensor
Weight: 6.63g
SPECIFICATIONS OF ESC
Support BLheli/BLHELI_S suite Pass-through ready
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 1S-4S Lipo
Continuous current: 20A
Peak current: 25A
Firmware: BLHELI_S
Motor Connectors: 1.25mm header pins connector
RECOMMEND PARTS
Motors:
1204 5000KV motor – www.amazon.es/dp/B07Z41GJ4W
Battery:
1S: 300mAh 1S Battery – www.amazon.es/dp/B07FFTVB8C
2S: 350mAh 2S Battery – www.amazon.es/dp/B07JG3ZFC5
3S:
300mAh 3S Battery – www.amazon.es/dp/B07WH1VRP1
450mAh 4S Battery – www.amazon.es/dp/B07QMR9KKL
4S: 450mAh 4S Battery – www.amazon.es/dp/B07RZ6PQPH
PACKAGE
1 * Toothpick F4 20A AIO 1-4S Brushless Flight Controller
1 * Cable Pigtail (XT30)
4 * M2x10mm screws
4 * M2 nuts
4 * Anti-vibration Rubber Dampers
4 * Motor Pluggable Pins
